1990 Indy 500 info

Polaris General Discussion



Thread Tools Display Modes
  #26
Old 01-01-2010
CWPottenger's Avatar
CWPottenger
Polaris Guy
CWPottenger's Info

Join Date: Jan 2009
Location: Illinois
Posts: 2,056
Default

If you can get if to rev up then it sounds like a secondary or belt issue. Is it the correct belt? if it is too long it will not pull in to the clutches correctly which would load the engine down. Or your sheaves are not moving freely to allow the belt to pull in.

Put it up on a stand, open hood, open throttle up while watching belt... It sound be running at top of primary and bottom of secondary at speed. On a stand it should snap right into the sheaves.
__________________
  #27
Old 01-01-2010
SabaII's Avatar
SabaII
340 Fanner
SabaII's Info

Join Date: Dec 2009
Location: St. Peter MN
Posts: 69
Default

I will try to make it work on a stand and see. I am going to take it to a friends house and we are going to go through the clutches. He has done quite a few and we are going to get it running right. Thanks for the help guys I will let you all know how it turns out.
__________________
When life gives you lemons, say fuck the lemons. Lets go snowmobiling.
Reply With Quote
  #28
Old 01-01-2010
blue avenger's Avatar
blue avenger
Ultrastud-Wannabe Postwhore
blue avenger's Info

Join Date: Oct 2008
Location: Kasson, MN
Posts: 2,753
Default

mine will spin up 7000+ and stay there with the throttle wide open. If you want to check your secondary clutch... just cleaning it and making sure it moves freely may help.

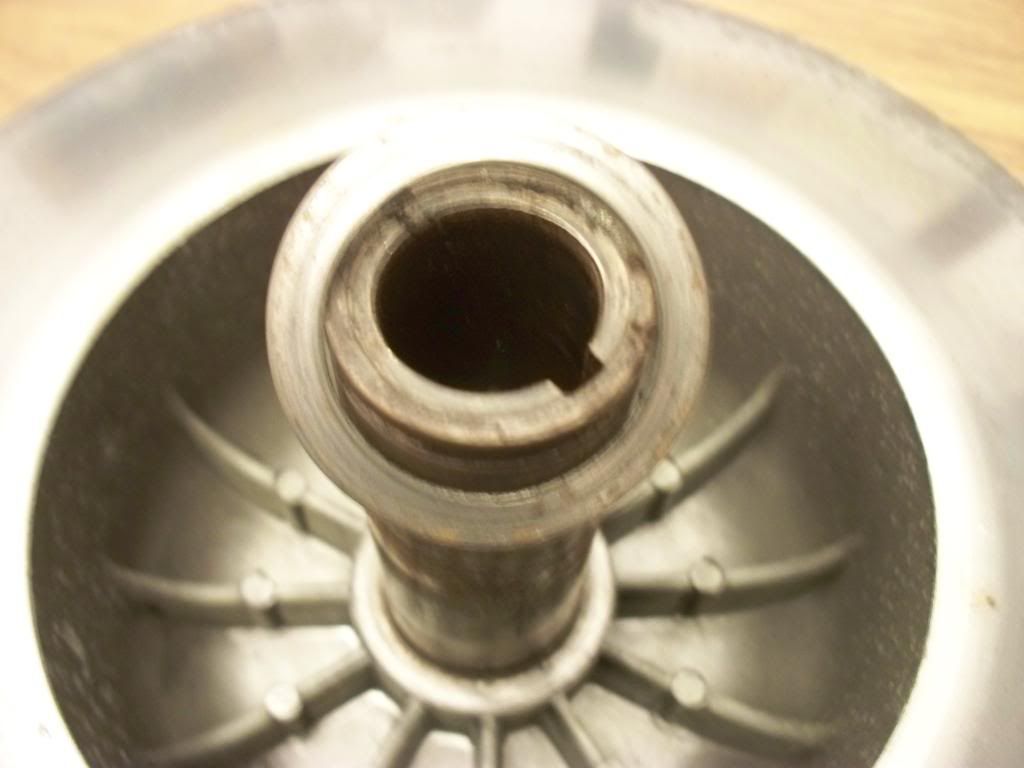

With the help of guys here I have learned the secondary is easy to work with. one bolt holds it on the jack shaft. If your shaft is as lubed as it should be the secondary should slide off very easy. once it is off you will have something like this...

You may have some dust covers on yours making it look a little smoother.
remove the snap ring and washer...


slide the helix up off the shaft, you may want to draw in the parts with a marker to make putting it together a little faster. as you pull the helix up the secondary sheave will unscrew a few inches. you will have to turn it back to your marks to put it together. again...




not a great picture of the spring but, above there is but one hole it can go in and belew on the helix there are 3 or 4 holes.
factory setting is #2.
#3 is for slowing down how fast it shift by adding more rotational tension.


onside the clutch you will find 3 plastic buttons that are replaceable wear surfaces.


they can be pulled ..or pryed out if let go to long and there is nothing to grab any more


the surface of the helix should be checked for wear to see if it went metal to metal and destroyed the surfaces. this will cause it to not work right.


the two halves also separate...


and there will be some shim washers between them to adj distance for belt wear thickness...
__________________
I'm loosing my mind, but as long as I keep the part that tells me when I gotta pee I should be OK.
Reply With Quote
  #29
Old 01-01-2010
blue avenger's Avatar
blue avenger
Ultrastud-Wannabe Postwhore
blue avenger's Info

Join Date: Oct 2008
Location: Kasson, MN
Posts: 2,753
Default

out of control, to many pictures waiting to load.
__________________
I'm loosing my mind, but as long as I keep the part that tells me when I gotta pee I should be OK.

Last edited by blue avenger : 01-01-2010 at 05:43 PM.
Reply With Quote
  #30
Old 01-01-2010
blue avenger's Avatar
blue avenger
Ultrastud-Wannabe Postwhore
blue avenger's Info

Join Date: Oct 2008
Location: Kasson, MN
Posts: 2,753
Default

out of control
__________________
I'm loosing my mind, but as long as I keep the part that tells me when I gotta pee I should be OK.

Last edited by blue avenger : 01-01-2010 at 05:41 PM.
Reply With Quote
  #31
Old 01-01-2010
CWPottenger's Avatar
CWPottenger
Polaris Guy
CWPottenger's Info

Join Date: Jan 2009
Location: Illinois
Posts: 2,056
Default

very nice picture step through.
__________________
  #32
Old 01-02-2010
SabaII's Avatar
SabaII
340 Fanner
SabaII's Info

Join Date: Dec 2009
Location: St. Peter MN
Posts: 69
Default

Thanks. That should help. I will def be looking at these when it gets taken apart now. It might be a while though. Sled got flipped on to its top tonight.
__________________
When life gives you lemons, say fuck the lemons. Lets go snowmobiling.
Reply With Quote
  #33
Old 04-12-2010
fireball 440's Avatar
fireball 440
340 Fanner
fireball 440's Info

Join Date: Apr 2010
Location: Minnesota
Posts: 22
Default

OK it revs up after engagement and then settles to 5000 rpm in ditches and fields? Sounds to me like the secondary spring needs to be moved to the 3rd hole for better backshifting.
Reply With Quote
  #34
Old 04-12-2010
OCR's Avatar
OCR
Summer Sux!!
OCR's Info

Join Date: Sep 2007
Location: Groton NY
Posts: 4,642
Default

If it is dropping that much after hitting peak, then you should also check the spring in the primary. Weak or broken spring will also cause this action.
__________________
Old Cat Rider

'93 Wildcat 700EFI w/ Comet 108 Pro-4 clutch & 01 ZR skid


http://twintiersleddin.proboards76.com/index.cgi


Quote:
we are all given sh*t in life, but some of us learn to turn it into fertilizer and grow from it, and some us try to fling it on others like monkeys
Reply With Quote
  #35
Old 04-12-2010
CWPottenger's Avatar
CWPottenger
Polaris Guy
CWPottenger's Info

Join Date: Jan 2009
Location: Illinois
Posts: 2,056
Default

Yep, something up there should not fall that far back.
__________________
